High-precision brass, aluminum, and nickel-plated tank valves, TPMS stems, and specialized pneumatic accessories engineered to ISO/TS 16949 standards.
The Schrader valve (also called the American valve) remains the global cornerstone for pneumatic containment, fluid sampling, and pressure monitoring across automotive, aerospace, HVAC, and industrial fluid power industries. Standardized under ISO 4570 (8V1 threads: 0.305 in / 7.7 mm x 32 TPI), modern OEM/ODM applications require significantly tighter tolerances, upgraded corrosion protection, and specialized elastomer integration compared to traditional commercial tire valves.
As global Tier-1 automotive manufacturers, industrial equipment OEMs, and aftermarket distributors scale their supply chains, selecting an qualified supplier requires evaluating metallurgic purity, dynamic spring rate consistency, core seal resilience, and automated quality control protocols. This comprehensive technical guide details the critical purchasing specifications, OEM design parameters, material selections, and emerging procurement trends shaping the Schrader valve manufacturing sector.
In high-pressure pneumatic systems (such as air suspension tanks and industrial pressure vessels operating from 200 to 500+ PSI), standard core seals fail due to micro-extrusion. OEM-grade Schrader valves utilize internal Viton (FKM) or Fluorosilicone o-rings coupled with nickel-plated C36000 brass bodies to achieve leak rates lower than 1x10⁻⁶ mbar·l/s under extreme ambient thermal shifts (-40°C to +150°C).
Material integrity determines valve life, galvanic corrosion resistance, and burst thresholds under high stress. Below is a comparative engineering benchmark of primary materials used across our OEM manufacturing lines:
| Substrate Material | Yield Strength (MPa) | Corrosion Resistance | Thermal Operating Range | Primary Industrial Applications |
|---|---|---|---|---|
| C36000 Free-Cutting Brass | 310 - 450 | High (Standard) | -40°C to +120°C | Air Compressor Tanks, NPT Male Threaded Valves, Universal Tire Stems |
| Electroless Nickel-Plated Brass | 340 - 480 | Extreme (>500h Salt Spray) | -50°C to +150°C | Marine Equipment, Vehicle Underbody Suspension, TPMS Assemblies |
| 6061-T6 Aircraft Aluminum | 276 - 310 | High (Anodized Finish) | -40°C to +100°C | Motorsport Wheels, Lightweight Tubeless Bicycle Stems, Aerospace Dust Caps |
| EPDM Over-Molded Rubber | N/A (Elastomer) | Weathering / Ozone Proof | -40°C to +125°C | Snap-in Passenger Vehicle TPMS Stems, High-Volume Automotive OEM |
Custom engineering tailored to your precise operating pressures, media compatibility, and aesthetic standards.
Precision CNC threading supporting NPT (1/16", 1/8", 1/4"), Metric (M8x1, M10x1), PTC (Push-To-Connect), and custom British Standard Pipe Taper (BSPT) threads with pre-applied PTFE thread sealant patch options.
Every core is torqued using calibrated digital spindle machines (0.25 to 0.35 Nm) ensuring consistent seal compression without over-tightening or damaging internal silicone/NBR gasket rings.
Direct OEM-fit snap-in and clamp-in designs engineered to interface seamlessly with modern 315MHz and 433MHz Tire Pressure Monitoring System (TPMS) sensors, maintaining dynamic wheel balance.
The global Schrader valve market is experiencing a significant technology shift driven by electric vehicle (EV) adoption, smart fleet analytics, high-pressure air suspension integration, and stringent environmental regulations against fugitive gas emissions.
With electric vehicles placing premium value on mass reduction to extend battery range, traditional heavy brass tire valves are increasingly being replaced by high-strength anodized 6061-T6 aluminum alloys. Aluminum Schrader stems reduce valve assembly weight by up to 45% per wheel location while enabling vibrant color customization (anodized black, gunmetal, silver) for premium automotive and bicycle rims.
Modern commercial trucks and passenger vehicles are migrating from passive wheel speed sensors to direct TPMS systems. Next-generation Schrader valve designs feature integrated anti-rotation notches, specialized stem profiles, and anti-galvanic nickel coatings to prevent bi-metallic corrosion between aluminum wheel rims and brass/nickel core assemblies.
Beyond automotive tires, Schrader valves are increasingly deployed in high-pressure pneumatic reservoirs, heavy-duty air brakes, air shocks, and trailer air lines. Industry demand has spiked for male-threaded tank valves (1/16" NPT, 1/8" NPT, and 1/4" NPT) capable of supporting continuous working pressures exceeding 300 to 500 PSI without core fatigue.
Environmental standards regarding HFC refrigerants and industrial air leakage require zero-leak valve seals. OEM procurement specs now mandate specialized HNBR, Fluorosilicone, and Viton gasket cores that resist chemical degradation when exposed to synthetic compressor oils, ozone, and road salt solutions.
Building upon over 18 years of high-precision component design and workshop-grade tool engineering, our manufacturing facilities combine automated CNC turning, rigorous quality testing, and scalable supply chain logistics to serve international distributors, Tier-1 automotive suppliers, and aftermarket brands.
Utilizing high-grade internal spring mechanisms engineered within micrometer tolerances, our valve cores and pneumatic fittings undergo automated pressure retention tests before packaging, eliminating field failure rates.
From initial CAD prototyping to laser-etched branding, custom thread pitches, special surface platings (Electroless Nickel, Chrome, Anodizing), and custom retail packaging, we offer end-to-end manufacturing flexibility.
We prioritize repairable and rebuildable valve assemblies. Replaceable core tips, rebuildable inflator heads, and standardized 1/4" NPT/PTC fittings extend component service life and lower overall cost of ownership.
Exporting to over 40 countries across North America, Europe, and Asia-Pacific. Fully compliant with REACH, RoHS, IATF 16949, and ISO 9001 standards for seamless customs clearance and OEM audit approvals.
Clear engineering and commercial answers to help procurement directors, quality assurance managers, and product designers evaluate our Schrader valve product line.
Standard brass (C36000) provides excellent strength and machinability for standard inflation needs. Electroless nickel-plated brass adds superior corrosion resistance (>500 hours salt spray resistance) and prevents galvanic corrosion when installed in alloy wheels or harsh marine environments. Aluminum valves (6061-T6) offer up to 45% mass reduction, ideal for high-performance automotive, EV applications, and tubeless cycling setups where rotational weight matters.

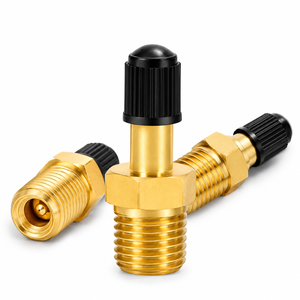

We manufacture male threaded Schrader tank valves in standard 1/16" NPT, 1/8" NPT, and 1/4" NPT sizes, as well as Metric (M8, M10) and PTC (Push-To-Connect) fittings. Custom thread pitches, taper lengths, and pre-applied thread sealant (Loctite or Vibra-Tite) can be integrated based on your OEM drawings.
Our heavy-duty brass and nickel-plated tank valves are rated for continuous working pressures up to 200 PSI, with specialized high-pressure core configurations supporting up to 500+ PSI. Temperature ratings depend on internal elastomeric seals: standard NBR operates from -30°C to +100°C, while Viton (FKM) seals withstand temperatures from -40°C to +200°C.

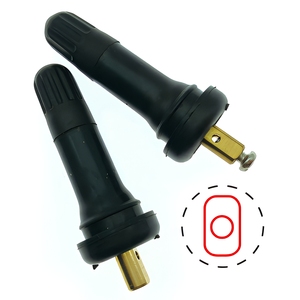

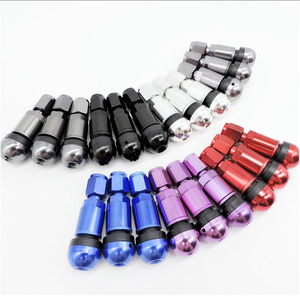

Yes. Our TPMS snap-in rubber valves (e.g., TV-600 series) and MS525AL aluminum clamp-in valves are engineered to strict OEM automotive standards (ISO/TS 16949). They feature ozone-resistant EPDM rubber, anti-corrosive nickel-plated cores, and precise mechanical interface dimensions for standard 315MHz/433MHz sensor modules.
For standard catalog items, our MOQ starts at 1,000 pieces. For custom OEM designs requiring unique tooling, custom threading, special plating, or customer logo laser engraving, MOQ typically ranges between 3,000 and 5,000 pieces depending on production complexity.
We utilize 100% automated optical inspection (AOI) for dimension verification, along with automated helium and air-under-water pressure testing for every valve assembly. Cores are automatically torqued to exact specifications (0.28-0.34 Nm) to prevent core rubber damage and ensure perfect seal seating.
Yes, we provide sample evaluation packages for qualified OEM buyers, product design engineers, and commercial distributors. Contact our technical sales team via the inquiry button to request physical samples and full engineering datasheet documentation.
Partner with an established OEM/ODM exporter delivering precision tolerances, guaranteed leak-proof quality, and competitive factory-direct pricing.
